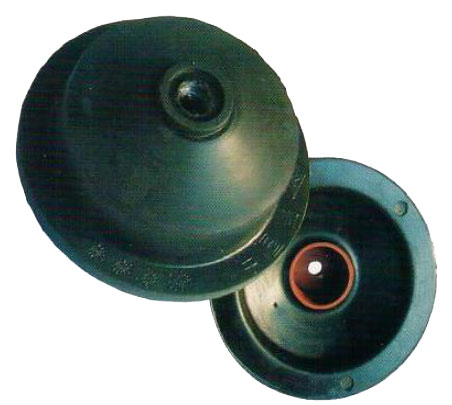

Application of JG shear type vibration isolator

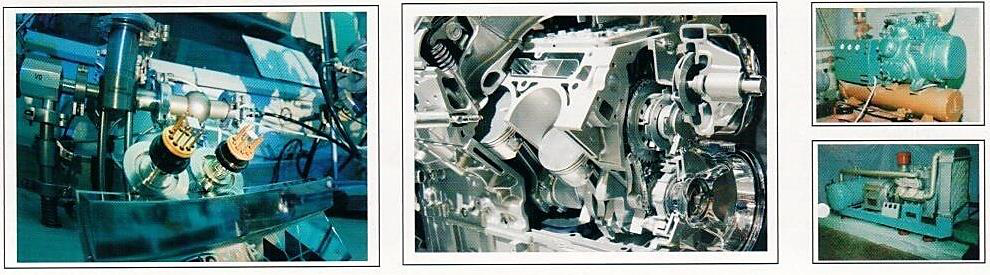

Scope of application: Used as the damping element of anti-vibration base of precise instrument, meter and machine tool, power machine tool, air conditioning and thermostatic equipments, fan, generator set, compressor unit and centrifugal machine; good effect of vibration isolation, absorption and impact resistance.

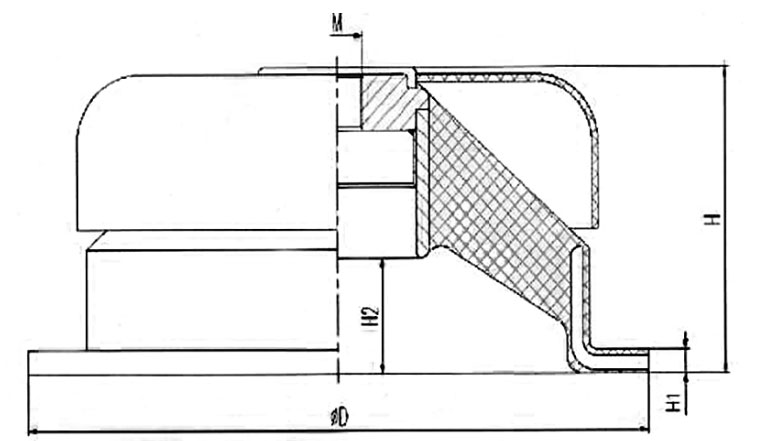

Main specifications and performance parameters of JG type series vibration isolator

Model	M	D	H	H1	H2	Weight(kg)
JG1	M12	100	43	6	15	0.35
JG3	M16	200	87	7	33	2.20
JG4	M20	290	133	8	53	6.00

Model		Active vibration isolation			Passive vibration isolation			Limit compression amount (mm)	Breaking load ≤(kg)
		Rated load (kg)	Static deformation (mm)	Natural frequency (Hz)	Rated load (kg)	Static deformation (mm)	Natural frequency (Hz)
JG1	-1	19	3～5.5	10.8～15.3	24	4～6.5	10～13	12	92
	-2	27			32				165
	-3	37			46				182
	-4	48			59				238
	-5	58			70				290
	-6	70			86				320
	-7	84			103				380
JG3	-1	100	6～11.5	7～10	120	10～15.5	6.3～7.6	28	385
	-2	140			175				690
	-3	200			250				770
	-4	270			335				1000
	-5	330			410				1230
	-6	405			500				1350
	-7	483			600				1600
JG4	-1	300	10.5～22	5.1～7.4	370	15～26.5	4.7～6.3	50	930
	-2	420			510				1670
	-3	580			710				1860
	-4	720			900				2400
	-5	920			1130				3000
	-6	1080			1320				3200
	-7	1260			1540				3800
